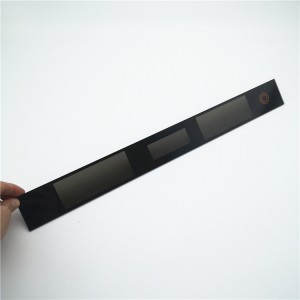

1.1mm semi translucent cover glass

Features:

Custom shape and size

Scratch resistant

Impact resistant

Shock resistant

Optical clarity

Various shape and size

Reliable and very strong

Colorless and Crystal Glass

Can be made very thin

Can be integrated with touch sensors

Ask for quote

Product Detail

Product Tags

Products Pics

0.7mm chemically tempered touch panel cover glass

1.1mm semi-translucent printed touch screen glass

2mm custom cover glass for capactive touch

3mm toughened touch screen cover glass

Technical data

	Aluminosilicate glass				Soda lime glass
Type	corning gorilla glass	dragontrail glass	Schott Xensat ion glass	panda glass	NEG T2X-1 glass	float glass
Thickness	0.4mm,0.5mm,0.55mm,0.7mm 1mm,1.1mm,1.5mm,2mm	0.55mm,0.7mm,0.8mm 1.0mm,1.1mm,2.0mm	0.55mm,0.7mm 1.1mm	0.7mm,1.1mm	0.55mm,0.7mm 1.1mm	0.55mm,0.7mm,1.1mm,2mm 3mm,4mm,5mm,6mm
Chemical strengthened	DOL≥ 40um CS≥700Mpa	DOL≥ 35um CS≥650Mpa	DOL≥ 35um CS≥650Mpa	DOL≥ 32um CS≥600Mpa	DOL≥ 35um CS≥650Mpa	DOL≥ 8um CS≥450Mpa
Hardness	≥9H	≥9H	≥7H	≥7H	≥7H	≥7H
Transmittance	>92%	>90%	>90%	>90%	>90%	>89%

Surface treatment: Anti glare coating,anti reflective coating,anti fingerprint,ito conductive coating available.

Tempered option: Thermally tempered,heat strengthened,chemically strengthened(chemically tempered).

Processing

Cover Glass Type

Aluminosilicate cover glass

1. Aluminosilicate glass refers to the glass with silica and alumina as the main components, in which the alumina content can reach more than 20%. The coordination number of the aluminum ion depends on the R2O (alkali metal oxide) content.

Gorilla Glass produced by Corning is one kinf of aluminosilicate glass.because of this superior performance in.

Superior scratch resistant good chemical stability,
electrical insulation
mechanical strength
low thermal expansion coefficient
high temperature viscosity.
High price
It is widely used on high-class touch screen and phone,or other portable devices.

Soda Lime Cover Glass

Soda-lime glass, most common form of glass produced, it is inexpensive, chemically stable, reasonably hard, and extremely workable glass,it is enough for basic requirement,those make it most popular and widely use on touch panel in various application.

Thermally tempered glass,heat strengthened glass,confused?

Annealed glass VS heat strengthened glassVS thermally tempered glass.

Thermally Tempered, Chemically Strengthened,what Is The Different?

What is the difference between thermally tempered and chemically strengthened glass.
