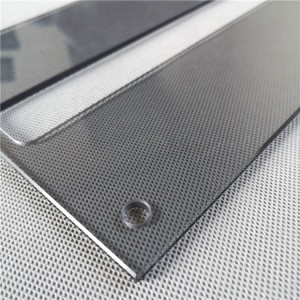

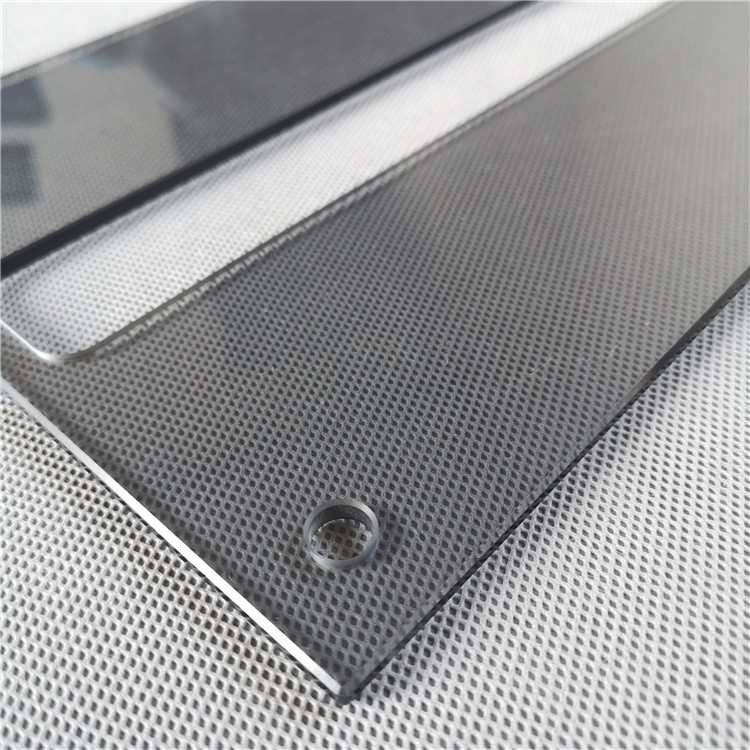

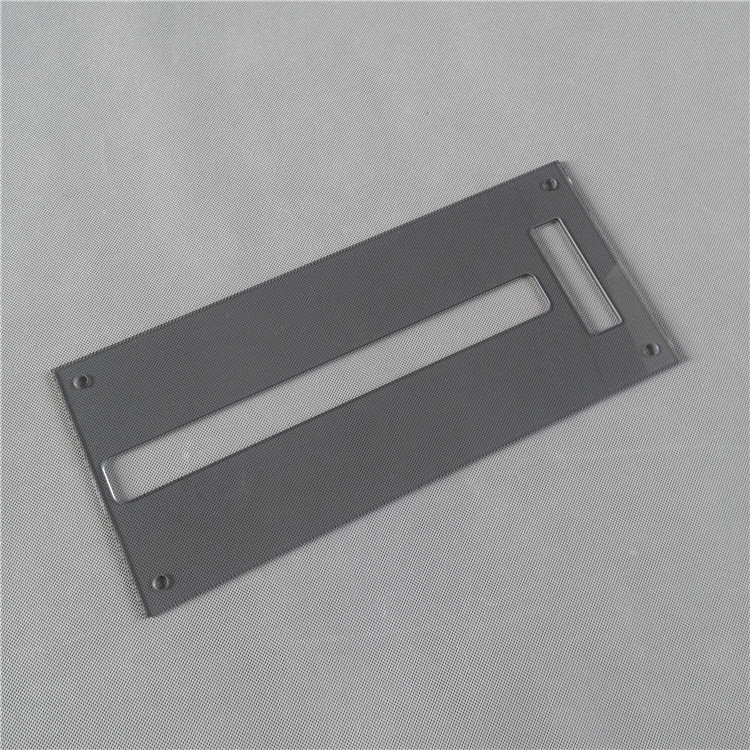

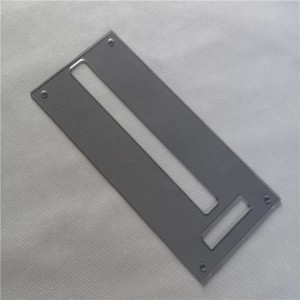

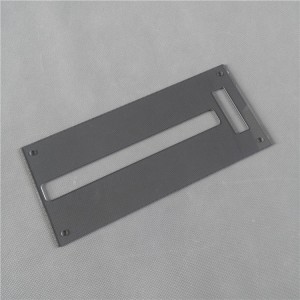

5mm grey coloured glass for computer case
Technical data
EDGEWORK |
||||||
pictures |
edge type |
chamfer |
desp |
thickness |
Min dimension |
Max dimension |
flat ground edge |
size:<2mm angle:<45° |
grinding wheels put a satin finish on the edge |
0.4mm to 19mm |
5*5mm |
3660*2440mm |
|
flat polished edge |
size:0.4mm to 2mm angle:<45° |
grinding wheels put high gloosy and polished finished to the edge |
3mm to 19mm |
40*40mm |
3660*2440mm |
|
pencil ground edge |
N/A |
grinding wheels put a satin finish on the edge along with a radius edge similar to pencil or c-shape |
2mm to 19mm |
20*20mm |
3660*2440mm |
|
pencil polished egde |
N/A |
grinding wheels put high gloosy and polished finished to the edge along with the a radius edge similar to pencil or c-shape |
3mm to 19mm |
80*80mm |
3660*2440mm |
|
mitered or beveled edge |
N/A |
ground or polished bevels |
3mm to 19mm |
40*40mm |
2500*2200mm |
|
bull nose edge |
N/A |
grinding wheels put curved edge along the top and bottom for an even finish |
3mm to 19mm |
80*80mm |
2500*2200mm |
|
tirple waterfall edge |
N/A |
grinding wheels put a gentle three-section slope on the edge similar to waterfall |
10mm to 19mm |
300*300mm |
2200*1800mm |
|
ogee edge |
N/A |
feature a concave arch flowing into a convex arch,like S shape on the edge |
10mm to 19mm |
300*300mm |
2200*1800mm |
|
V-groove edge |
N/A |
refers to the V shape which are composed by two opposite angular beveled edges |
5mm to 19mm |
200*200mm |
2200*1800mm |
Glass thickness |
glass size |
shape |
Edge grinding&polished |
glass cutting |
polished |
water jet cutting for cutouts |
glass drilling |
Laser engraving |
glass toughened |
0.4mm-15mm |
<3660*2440mm |
normal(round,square, rectangle) irregular flat curved |
ground edge polished edge (details see edgework chart) |
laser cutting wate jet cutting |
CNC/polished machine |
<1200*1200mm |
<Dia80mm |
<1500*1500mm |
chemically strengthened thermal tempered |
