Ito glass for emi shielding and touchscreens

Features:

Custom size and shape

High physical density of coating

Specific electrical resistance

high resistance glass (resistance between 150 and 500 ohms)

ordinary glass (resistance between 60 and 150 ohms)

low resistance glass (resistance less than 60 ohms)

High environmental and temperature stability

Excellent electrical conductivity and optical transparency

Coating uniformity

Capability to shield Electromagnetic Fields

Can be deposited into thin film

Thermally and chemically stable

Ask for quote

Product Detail

Product Tags

Products Pics

ITO conductive coated glass is made by spreading silicon dioxide (SiO2) and indium tin oxide (commonly known as ITO) layer by magnetron sputtering technology on glass substrate under entirely vacuumed condition,making coated face conductive, ITO is a metal compound with good transparent and conductive properties.

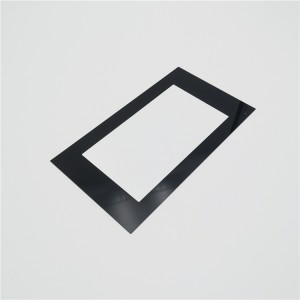

EMI shielding ito glass

2mm ito coating touch panel cover glass

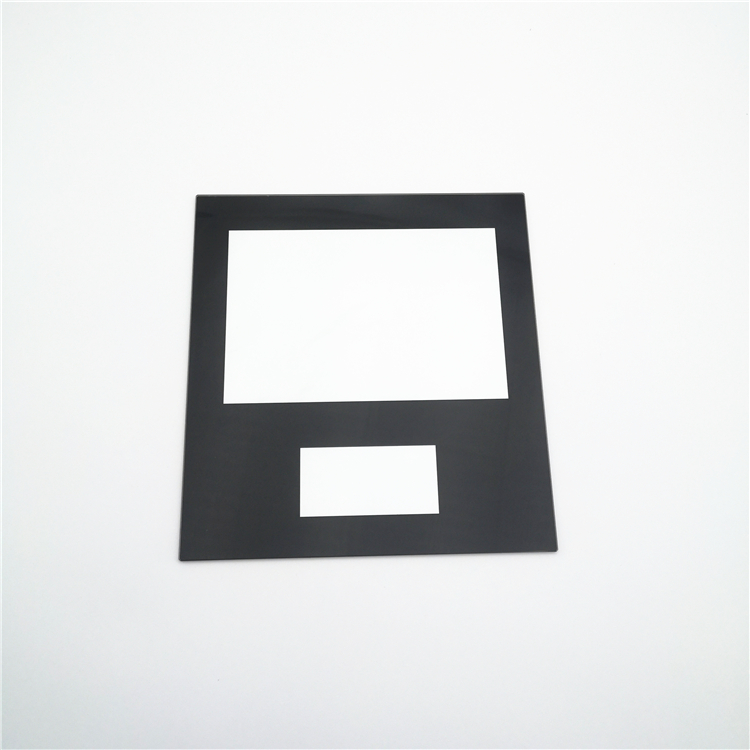

3mm tempered ito conductive cover glass

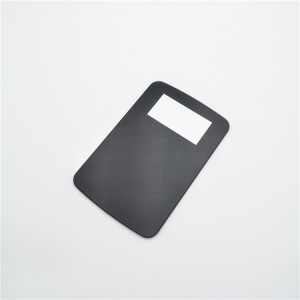

4mm ito glass for capacitive touch switch

Technical data

ITO glass thickness	0.4mm,0.5mm,0.55mm,0.7mm,1mm,1.1mm,2mm,3mm,4mm
resistance	3-5Ω	7-10Ω	12-18Ω	20-30Ω	30-50Ω	50-80Ω	60-120Ω	100-200Ω	200-500Ω
coating thickness	2000-2200Å	1600-1700Å	1200-1300Å	650-750Å	350-450Å	200-300Å	150-250Å	100-150Å	30-100Å

Glass resistance
Resistance type	low resistance	normal resistance	high resistance
Definition	<60Ω	60-150Ω	150-500Ω
Application	High resistance glass is generally used for electrostatic protection and touch screen production	Ordinary resistance glass is generally used for TN type liquid crystal display and electronic anti-interference(EMI shielding)	Low resistance glass is generally used in STN liquid crystal displays and transparent circuit boards

Functional test and reliability test
Tolerance	±0.2mm
Warpage	thickness ＜0.55mm,warpage≤0.15% thickness＞0.7mm,warpage≤0.15%
Z-T vertical	≤1°
Hardness	>7H
Coating Abrasion test	0000#steel wool with 1000gf，6000cycles,40cycles/min
Anti corrsion test(salt spray test)	NaCL concentration 5%: Temperature: 35°C Experiment time: 5min resistance change≤10%
Humidity resistance test	60℃，90%RH，48 hours resistance change≤10%
Acid resistance test	HCL concentration:6%,Temperature: 35°C Experiment time: 5min resistance change≤10%
Alkali resistance test	NaOH concentration:10%,Temperature: 60°C Experiment time: 5min resistance change≤10%
Themal stability	Temperature:300°C heating time:30min resistance change≤300%

Processing

Ito Glass Flow Chart

There Is Sio2 Overlay Under Ito Coating,What Is That?

Si02 layer:

(1) The role of the SiO2 layer:

The main purpose is to prevent the metal ions in the soda-calcium substrate from diffusing into the ITO layer. It affects the conductivity of the ITO layer.

(2) Film thickness of SiO2 layer:

The standard film thickness is generally 250 ± 50 Å

(3) Other components in the SiO2 layer:

Usually, in order to improve the transmittance of ITO glass, a certain proportion of SiN4 is doped into SiO2.

Both Are Conductive Glass,What Is Fto Glass?

GLASS RESISTANCE
TYPE	low resistance	normal resistance	high resistance
Definition	<60Ω	60-150Ω	150-500Ω
Application	High resistance glass is generally used for electrostatic protection and touch screen production	Ordinary resistance glass is generally used for TN type liquid crystal display and electronic anti-interference(EMI shielding)	Low resistance glass is generally used in STN liquid crystal displays and transparent circuit boards
